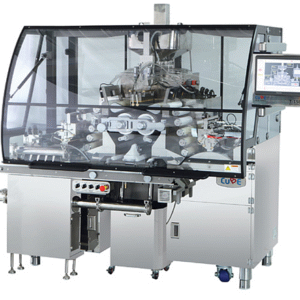

A soft capsule machine with safety cover, model T-150S, is a fully automatic machine for producing soft capsules. This machine is designed with safety cover for operator?s safety. A ribbon thickness checker is installed on a guide roller at the left and right side each. According to the check result, the ribbons?thickness is controlled by servo system in the spreader boxes. Air shower system is also installed on transferring conveyor, to remove the oil on the produced soft capsules. The machine?s PLC touch-screen monitor provides an effective production management.
A soft capsule machine with safety cover / T-150S / Cube Gel
You may add any content here from Customizer->WooCommerce->Single Product Builder->Request a quote
|
LIST |
MODEL T-150S |
| Capsule Shape / Size |
Round, Oval, Oblong, etc |
| Type of Soft Capsule |
Gelatin / Vegetable (Option) |
| Die Roll Size |
Ø150 x 250mm |
| Power Consumption |
Approx. Gelatin 9kW / Vegetable 12kW |
| Air Pressure |
6kg f/㎡ |
| Control |
Touch Screen / PLC |
| Dimensions / Weight (Approx.) |
2,000(L) x 1,400(W) x 2,000(H)mm / 2,000kg |
| Electricity |
380V, 3Phase, 50/60 HZ |
